Typical Nail Shanks

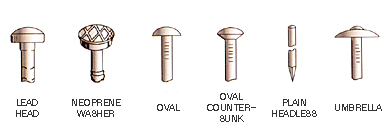

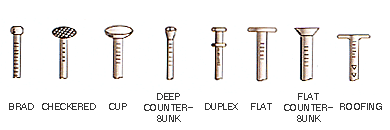

Typical Nail Heads

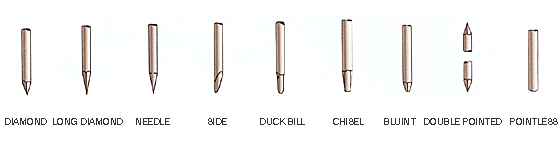

Typical Nail Points

Steel Wire Gage		LENGTH - INCHES
Steel Wire Gage					1					2				3		4		5	6	7	8	9	10	11	12
	Ga.	-	-	-	29	26	23	20	17	15	15	12	11	11	8.9	7.9	7.1	6.4	5.2	4.5	4.0	3.4	3.2	2.9	2.7
	Ga.	-	-	-	43	38	34	29	25	22	20	18	16	15	13	11	10	9.0	7.6	6.5	5.7	5.0	4.5	4.1	3.8
1	Ga.	-	-	-	47	44	40	34	29	26	23	21	20	18	16	14	12	11	9.3	8.0	7.0	6.3	5.7	5.2	4.7
2	Ga.	-	-	-	60	54	48	41	35	31	28	25	23	21	18	16	14	13	11	9.3	8.1	7.2	6.6	6.1	5.6
3	Ga.	-	-	-	67	60	55	47	41	36	32	29	27	25	21	18	16	15	12	11	9.4	8.3	7.6	7.1	6.6
4	Ga.	-	-	-	81	74	66	55	48	41	37	34	31	29	25	22	20	18	15	13	11	9.8	8.9	8.1	7.5
5	Ga.	-	-	-	90	81	74	61	52	45	41	38	35	32	28	24	22	21	18	16	14	12	12	11	9.6
6	Ga.	-	149	128	113	101	91	76	65	58	52	47	43	39	34	29	26	24	20	18	16	15	13	11	11
7	Ga.	-	174	148	132	120	110	92	78	70	61	55	53	51	40	35	31	28	24	19	18	16	14	13	12
8	Ga.	238	198	174	153	139	126	106	93	82	74	56	61	56	48	42	38	34	28	24	21	19	17	15	14
9	Ga.	286	238	213	185	170	152	128	112	99	87	79	71	67	58	50	45	41	34	29	25	23	21	19	17
10	Ga.	373	320	277	242	216	196	165	142	124	111	100	91	84	71	62	55	49	42	36	31	27	25	23	21
11	Ga.	417	366	323	285	254	233	200	171	149	136	122	111	103	87	77	69	61	52	44	39	35	31	29	26
12	Ga.	603	511	442	405	351	327	268	229	204	182	161	149	137	118	103	95	87	71	63	56	50	45	40	36
13	Ga.	802	688	590	508	458	412	348	297	260	232	209	190	175	153	138	123	110	93	-	-	-	-	-	-
14	Ga.	1037	863	806	667	610	536	459	406	350	312	278	256	233	201	176	157	140	117	-	-	-	-	-	-
15	Ga.	1316	1132	971	869	787	694	602	501	437	390	351	317	290	246	220	196	177	145	-	-	-	-	-	-
16	Ga.	1708	1414	1229	1099	973	872	739	635	553	496	452	410	370	318	277	248	226	-	-	-	-	-	-	-
17	Ga.	2306	1904	1581	1409	1253	1139	956	831	746	666	590	532	486	418	360	322	295	-	-	-	-	-	-	-

What Does " PENNY " Mean?

The penny system of designating nail size originated in england many years ago. Ten penny, four penny, etc., nails derived their names from the fact that one hundred nails of that size cost tenpence, fourpence, etc.
Today the penny represents not cost, but the definite length of nails measured from the head to the tip of the point.
The term "penny" is still shown by using the English pence sign-d.
Nails start at the 2 d size which is 1″ in length. They range up to 60 d size which is 6″ in length.
The 2 d through 16 d increase in quarter-inch increments; thus a 2 d nail is 1″ , a 3 d nail is 1¼″, etc. Those above 16 d increase by ½″ increments. Length of nails that are shorter then 2 d or longer then 60 d is shown in inches( or fractions thereof ).

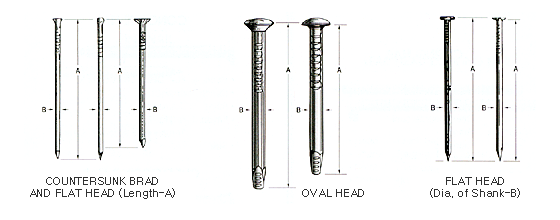

How To Determine Dimenstions of Nails, Spike

Standard Wire Gauges

Number of Gauge	A.S.W.G.		B.W.G.
Number of Gauge	inch	mm	inch	mm
0 0 0 0 0 0 0	.4900	12.446
0 0 0 0 0 0	.4615	11.722
0 0 0 0 0	.4305	10.394
0 0 0 0	.3938	10.002	.454	11.531
0 0 0	.3625	9.207	.425	10.475
0 0	.3310	8.407	.380	9.652
0	.3065	7.785	.340	8.636

1	.2830	7.188	.300	7.620
2	.2625	6.667	.284	7.213
3	.2437	6.189	.259	6.578
4	.2253	5.722	.238	6.045
5	.2070	5.257	.220	5.588
6	.1920	4.876	.203	5.156
7	.1770	4.495	.180	4.572
8	.1620	4.114	.165	4.191
9	.1483	3.766	.148	3.759
10	.1350	3.429	.134	3.403

11	.1205	3.060	.120	3.048
12	.1055	2.679	.109	2.768
13	.0915	2.324	.095	2.413
14	.0800	2.032	.083	2.108
15	.0720	1.828	.072	1.828
16	.0625	1.587	.065	1.651
17	.0540	1.371	.058	1.473

Number of Gauge	A.S.W.G.		B.W.G.
Number of Gauge	inch	mm	inch	mm
18	.0475	1.206	.049	1.244
19	.0410	1.041	.042	1.066
20	.0348	.883	.035	.889

21	.03175	.806	.032	.812
22	.0286	.726	.028	.711
23	.0258	.655	.025	.635
24	.0230	.584	.022	.558
25	.0204	.518	.020	.508
26	.0181	.459	.018	.457
27	.0173	.439	.016	.406
28	.0162	.411	.014	.355
29	.0150	.381	.013	.330
30	.0140	.335	.012	.304

31	.0132	.335	.010	.254
32	.0128	.325	.009	.228
33	.0118	.299	.008	.203
34	.0104	.264	.007	.177
35	.0095	.241	.005	.127
36	.0090	.228	.004	.101
37	.0085	.216
38	.0080	.203
39	.0075	.109
40	.0070	.177
